  To Manufacture & Supply Latest Design, State of Art Technology, Cotton Seed and Sunflower Seed Processing Equipments, Hammer Mill, Etc.

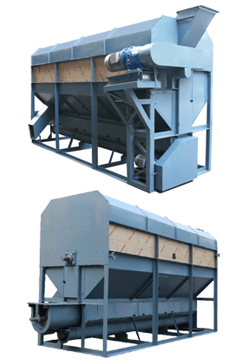

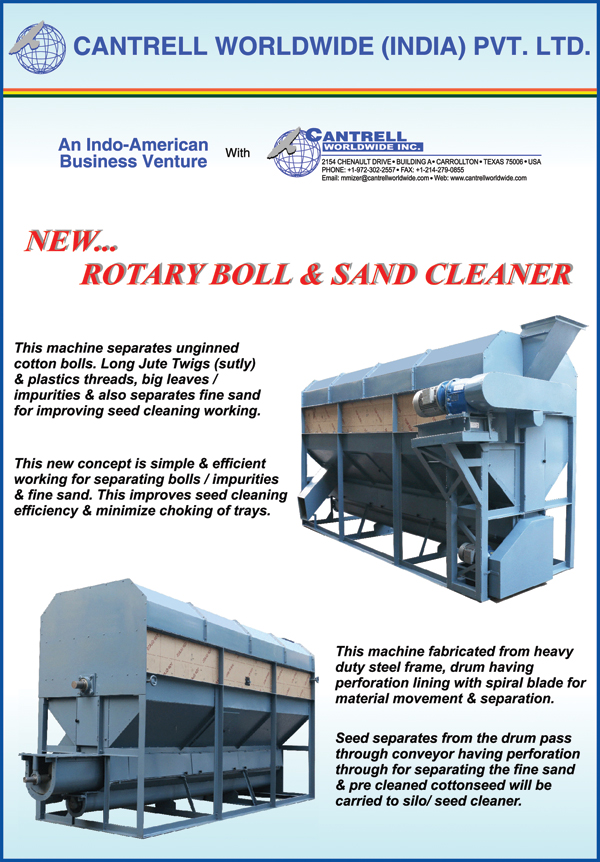

  Rotary Boll and Sand Cleaner
  This machine separates unginned cotton bolls. Long Jute Twigs (sutly) & plastics threads, big leaves / impurities & also separates fine sand for improving seed cleaning working. This new concept is simple & efficient working for separating bolls / impurities& fine sand. This improves seed cleaning efficiency & minimize choking of trays.

This machine fabricated from heavyduty steel frame, drum having perforation lining with spiral blade for material movement & separation.

Seed separates from the drum pass through conveyor having perforation through for separating the fine sand & pre cleaned cottonseed will be carried to silo/ seed cleaner.

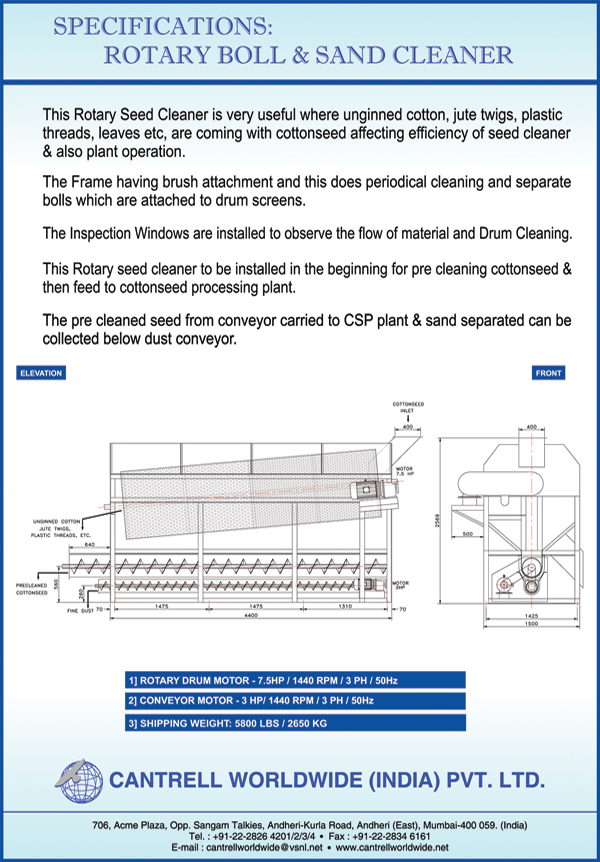

  • This Rotary Seed Cleaner is very useful where unginned cotton, jute twigs, plasticthreads, leaves etc, are coming with cottonseed affecting efficiency of seed cleaner& also plant operation.
  • The Frame having brush attachment and this does periodical cleaning and separate bolls which are attached to drum screens.
  • The Inspection Windows are installed to observe the flow of material and Drum Cleaning.This Rotary seed cleaner to be installed in the beginning for pre cleaning cottonseed & then feed to cottonseed processing plant.
  • The pre cleaned seed from conveyor carried to CSP plant & sand separted can be collected below dust conveyor.

  Page 1

Rotory Send & Boll Reel Machine
